MAZDA MODEL CX-3 2015  Instruktionsbog (in Danish)

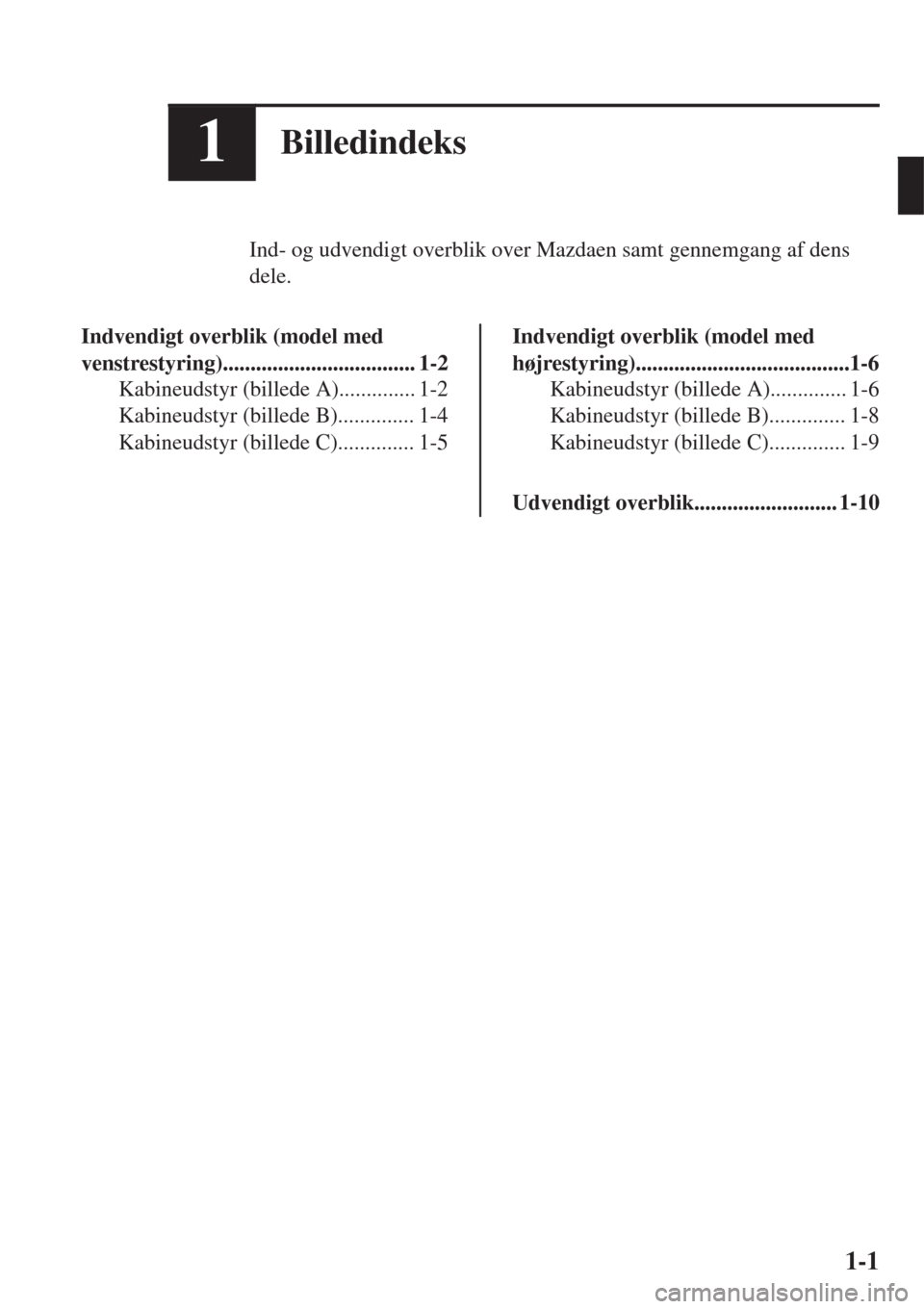

1Billedindeks
Ind- og udvendigt overblik over Mazdaen samt gennemgang af dens
dele.
Indvendigt overblik (model med
venstrestyring)................................... 1-2
Kabineudstyr (billede A).............. 1-2
Kabineudstyr (billede B).............. 1-4
Kabineudstyr (billede C).............. 1-5
Indvendigt overblik (model med
højrestyring).......................................1-6
Kabineudstyr (billede A).............. 1-6
Kabineudstyr (billede B).............. 1-8
Kabineudstyr (billede C).............. 1-9
Udvendigt overblik.......................... 1-10
1-1

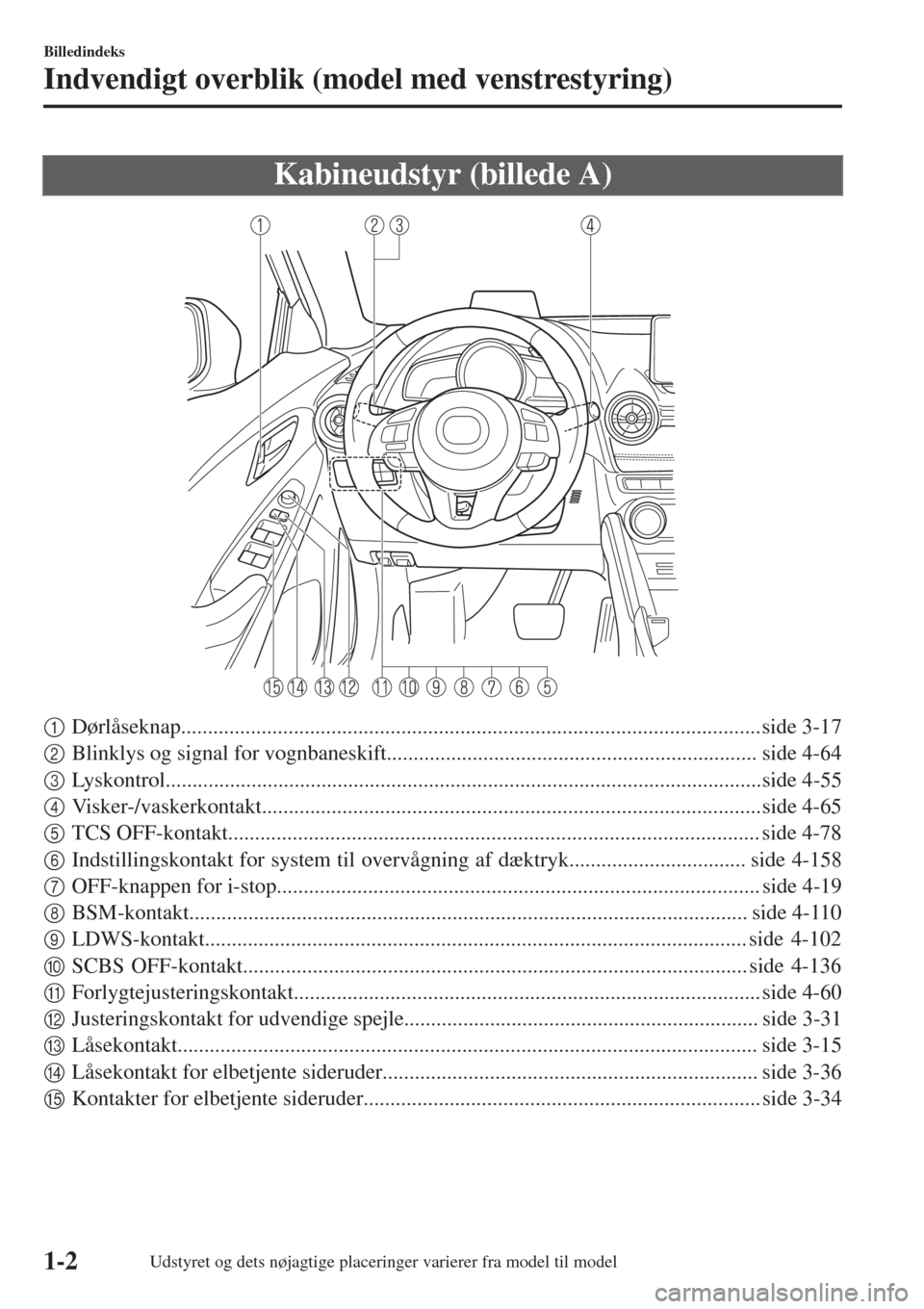

Kabineudstyr (billede A)
1Dørlåseknap............................................................................................................side 3-17
2Blinklys og signal for vognbaneskift..................................................................... side 4-64
3Lyskontrol...............................................................................................................side 4-55
4Visker-/vaskerkontakt.............................................................................................side 4-65
5TCS OFF-kontakt................................................................................................... side 4-78
6Indstillingskontakt for system til overvågning af dæktryk................................. side 4-158
7OFF-knappen for i-stop.......................................................................................... side 4-19
8BSM-kontakt........................................................................................................ side 4-110
9LDWS-kontakt..................................................................................................... side 4-102
0SCBS OFF-kontakt.............................................................................................. side 4-136
AForlygtejusteringskontakt....................................................................................... side 4-60
BJusteringskontakt for udvendige spejle.................................................................. side 3-31
CLåsekontakt............................................................................................................ side 3-15
DLåsekontakt for elbetjente sideruder...................................................................... side 3-36
EKontakter for elbetjente sideruder.......................................................................... side 3-34
Billedindeks
Indvendigt overblik (model med venstrestyring)
1-2Udstyret og dets nøjagtige placeringer varierer fra model til model

1Audiokontrolkontakter........................................................................................... side 5-62
2Instrumentgruppe................................................................................................... side 4-22
3Instrumentpanelbelysning...................................................................................... side 4-28
4Fartpilotkontakter..................................................................................... side 4-121, 4-150
5Sædevarmerkontakter............................................................................................... side 2-6
6Havariblinklys........................................................................................................ side 4-71
7Starttrykknap............................................................................................................ side 4-4
8Ratskiftekontakt..................................................................................................... side 4-46
9Oplåsningsgreb....................................................................................................... side 3-30
0Udløserhåndtag for åbning af motorhjelm............................................................. side 6-19
AUdløserhåndtag til åbning af brændstofklap.......................................................... side 3-28
Billedindeks
Indvendigt overblik (model med venstrestyring)
Udstyret og dets nøjagtige placeringer varierer fra model til model1-3

Kabineudstyr (billede B)
1SRS-airbags............................................................................................................ side 2-38
2Active Driving Display.......................................................................................... side 4-32
3Airconditionsystem.................................................................................................. side 5-2
4Kontakt til elbagrudeside....................................................................................... side 4-69
5Audiosystem........................................................................................................... side 5-14
6DVD/CD-spiller..................................................................................................... side 5-14
7Tilbehørsstik.........................................................................................................side 5-146
8Ekstern inputterminal............................................................................................. side 5-64
9Kommandokontakt................................................................................................. side 5-40
0Kontakt til valg af kørsel........................................................................................ side 4-89
AGearstang/gearvælger................................................................................... side 4-40, 4-43
BSikringsblok (venstre side)..................................................................................... side 6-54
Billedindeks
Indvendigt overblik (model med venstrestyring)
1-4Udstyret og dets nøjagtige placeringer varierer fra model til model

Kabineudstyr (billede C)
1Sikkerhedsseler.......................................................................................................side 2-12
2SRS-airbag............................................................................................................. side 2-38
3Flaskeholder......................................................................................................... side 5-148
4Solskærm............................................................................................................. side 5-144
5Sminkespejl.......................................................................................................... side 5-144
6Kabinelys............................................................................................................. side 5-144
7Soltagskontakt........................................................................................................ side 3-37
8Bakspejl.................................................................................................................. side 3-33
9Handskerum......................................................................................................... side 5-149
0Parkeringsbremse................................................................................................... side 4-73
AKopholdere...........................................................................................................side 5-147
BForsæde.................................................................................................................... side 2-5
CBagsæde................................................................................................................... side 2-7
Billedindeks
Indvendigt overblik (model med venstrestyring)
Udstyret og dets nøjagtige placeringer varierer fra model til model1-5

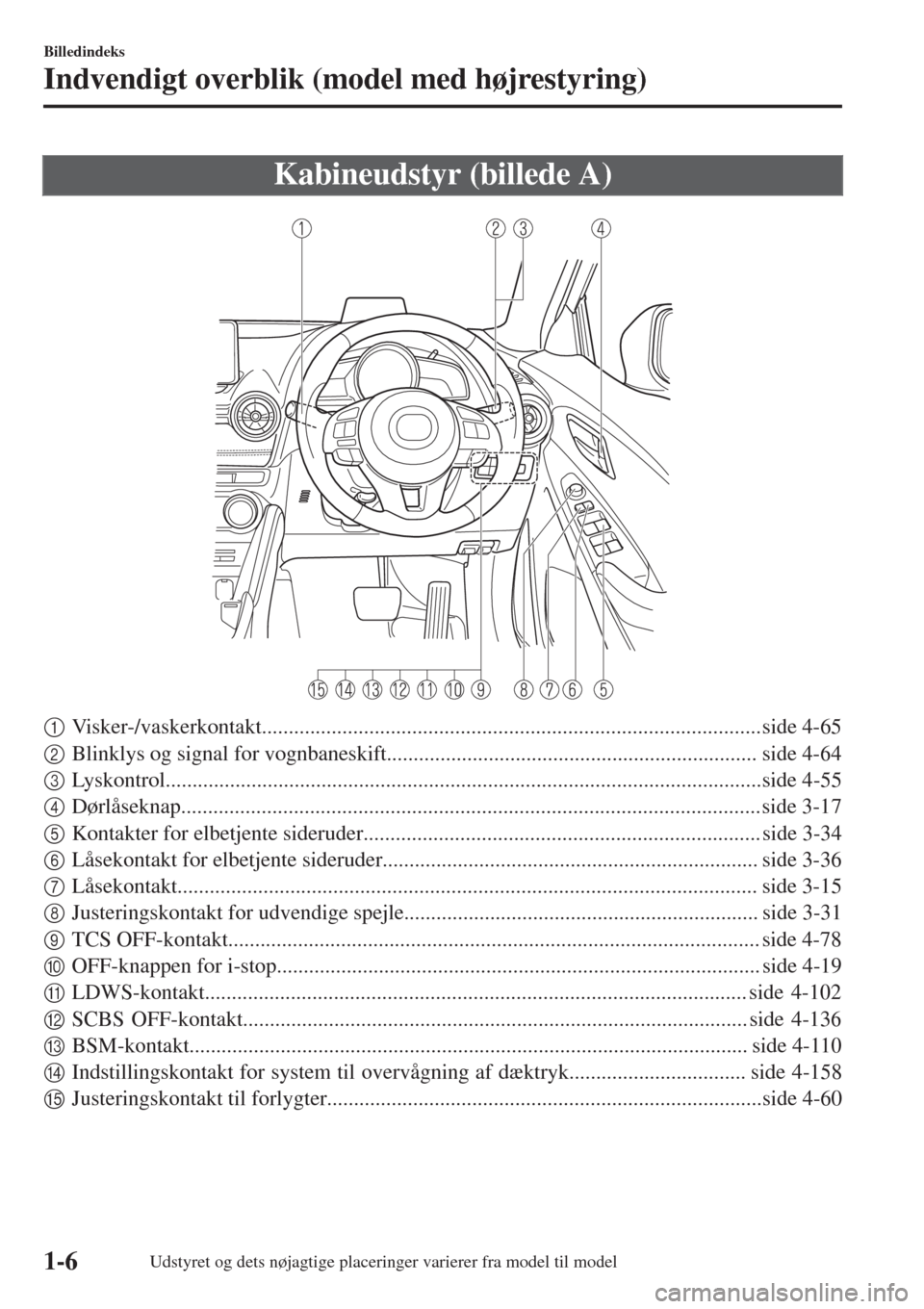

Kabineudstyr (billede A)
1Visker-/vaskerkontakt.............................................................................................side 4-65
2Blinklys og signal for vognbaneskift..................................................................... side 4-64
3Lyskontrol...............................................................................................................side 4-55
4Dørlåseknap............................................................................................................side 3-17
5Kontakter for elbetjente sideruder.......................................................................... side 3-34
6Låsekontakt for elbetjente sideruder...................................................................... side 3-36
7Låsekontakt............................................................................................................ side 3-15
8Justeringskontakt for udvendige spejle.................................................................. side 3-31
9TCS OFF-kontakt................................................................................................... side 4-78
0OFF-knappen for i-stop.......................................................................................... side 4-19
ALDWS-kontakt..................................................................................................... side 4-102
BSCBS OFF-kontakt.............................................................................................. side 4-136
CBSM-kontakt........................................................................................................ side 4-110
DIndstillingskontakt for system til overvågning af dæktryk................................. side 4-158
EJusteringskontakt til forlygter.................................................................................side 4-60
Billedindeks
Indvendigt overblik (model med højrestyring)
1-6Udstyret og dets nøjagtige placeringer varierer fra model til model

1Havariblinklys........................................................................................................ side 4-71
2Audiokontrolkontakter........................................................................................... side 5-62
3Instrumentgruppe................................................................................................... side 4-22
4Instrumentpanelbelysning...................................................................................... side 4-28
5Fartpilotkontakter..................................................................................... side 4-121, 4-150
6Udløserhåndtag til åbning af brændstofklap.......................................................... side 3-28
7Udløserhåndtag for åbning af motorhjelm............................................................. side 6-19
8Oplåsningsgreb....................................................................................................... side 3-30
9Starttrykknap............................................................................................................ side 4-4
Billedindeks
Indvendigt overblik (model med højrestyring)
Udstyret og dets nøjagtige placeringer varierer fra model til model1-7

Kabineudstyr (billede B)
1SRS-airbags............................................................................................................ side 2-38
2Audiosystem........................................................................................................... side 5-14
3Airconditionsystem.................................................................................................. side 5-2
4Kontakt til elbagrudeside....................................................................................... side 4-69
5Active Driving Display.......................................................................................... side 4-32
6DVD/CD-spiller..................................................................................................... side 5-14
7Tilbehørsstik.........................................................................................................side 5-146
8Ekstern inputterminal............................................................................................. side 5-64
9Kommandokontakt................................................................................................. side 5-40
0Kontakt til valg af kørsel........................................................................................ side 4-89
AGearstang/gearvælger................................................................................... side 4-40, 4-43
BSikringsblok (venstre side)..................................................................................... side 6-54
Billedindeks
Indvendigt overblik (model med højrestyring)
1-8Udstyret og dets nøjagtige placeringer varierer fra model til model

Kabineudstyr (billede C)
1Bakspejl.................................................................................................................. side 3-33
2Solskærm............................................................................................................. side 5-144
3Sminkespejl.......................................................................................................... side 5-144
4Kabinelys............................................................................................................. side 5-144
5Soltagskontakt........................................................................................................ side 3-37
6Flaskeholder......................................................................................................... side 5-148
7SRS-airbag............................................................................................................. side 2-38
8Sikkerhedsseler.......................................................................................................side 2-12
9Bagsæde................................................................................................................... side 2-7
0Forsæde.................................................................................................................... side 2-5
AKopholdere...........................................................................................................side 5-147
BParkeringsbremse................................................................................................... side 4-73
CHandskerum......................................................................................................... side 5-149
Billedindeks
Indvendigt overblik (model med højrestyring)
Udstyret og dets nøjagtige placeringer varierer fra model til model1-9

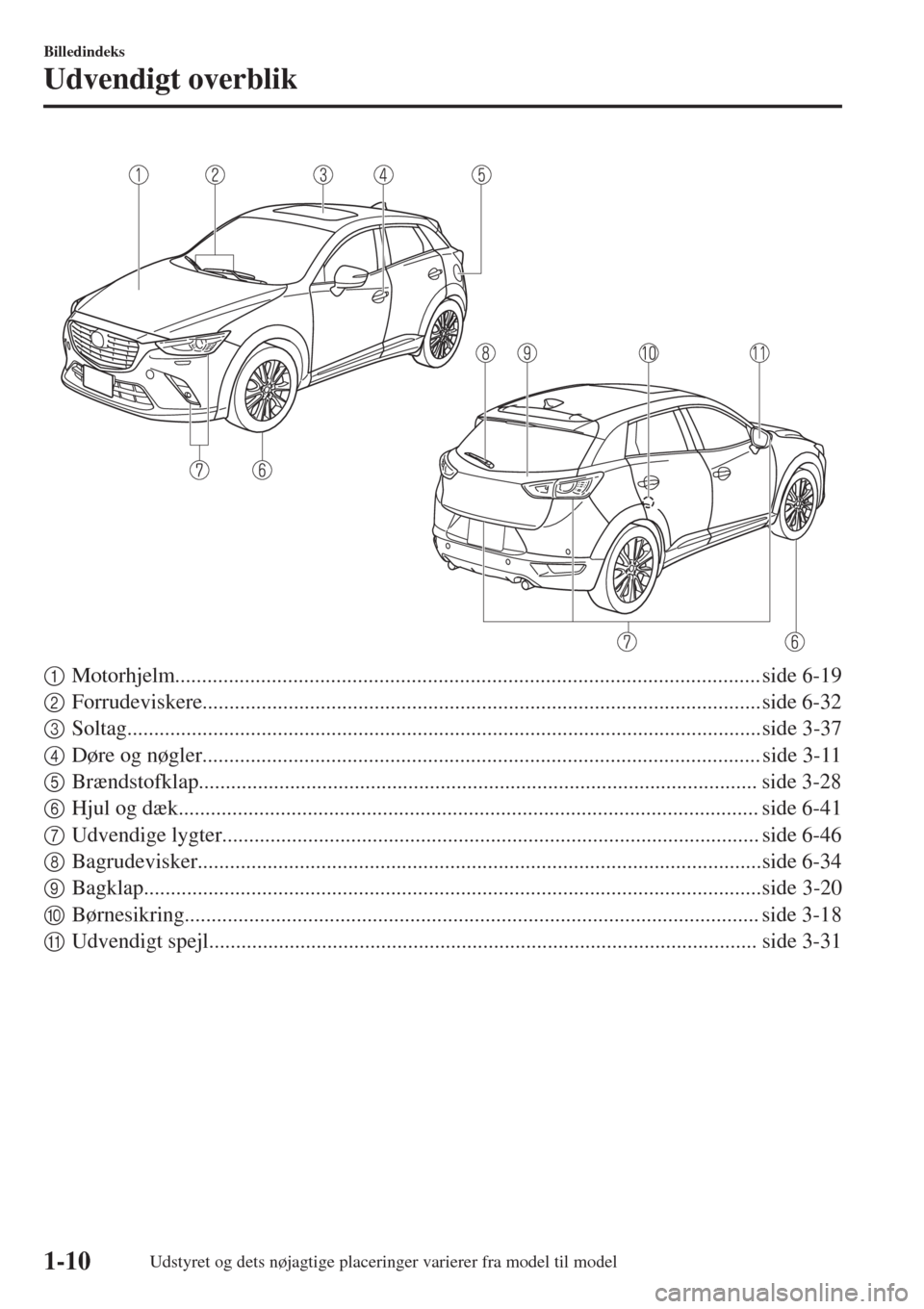

1Motorhjelm............................................................................................................. side 6-19
2Forrudeviskere........................................................................................................side 6-32
3Soltag......................................................................................................................side 3-37
4Døre og nøgler........................................................................................................ side 3-11
5Brændstofklap........................................................................................................ side 3-28
6Hjul og dæk............................................................................................................ side 6-41
7Udvendige lygter.................................................................................................... side 6-46
8Bagrudevisker.........................................................................................................side 6-34
9Bagklap...................................................................................................................side 3-20
0Børnesikring........................................................................................................... side 3-18
AUdvendigt spejl...................................................................................................... side 3-31
Billedindeks
Udvendigt overblik
1-10Udstyret og dets nøjagtige placeringer varierer fra model til model
